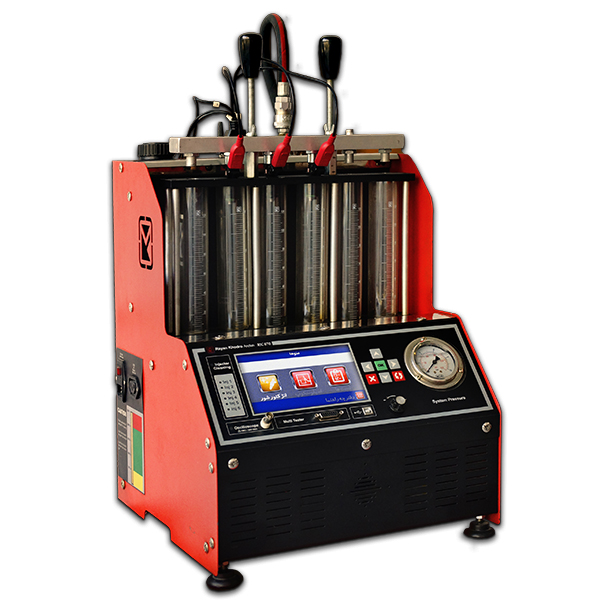

RayanKhodro RIC670

Overview


Injector cleaner and tester makes full use of both ultrasonic cleaning and micro-computer controlling technology.
•    Integrates automatic cleaning, changing and charging functions; covering ATF 94 and 96, CVT, ATF VI, DSG and DCG types of oil
•    Database input possible
•    Multi-language available (extendable easily)

Features


•    Perform simultaneous cleaning on several injectors and remove the carbon deposits on the injector completely
•    Test the uniformity of injecting amount of each injector and monitor the spraying status of each injector with the help of backlight; this test is also for reverse flush
•    Test the sealing and dribbling conditions of injectors under system pressure
•    Check the injecting amount of the injector in 15 seconds of constant injection
•    Test injectors by simulating different working conditions
•    Equipped with various adaptors and couplers

Tech Specs


•    Power supply: AC 220 V / 50 Hz
•    Input power: 250 W
•    Range of pressure adjustment: 0 ~ 0.65 MPa
•    Length of pressure adjustment: 0.004 MPa
•    Range of simulating test: 10 ~ 9,999 rpm
•    Step length of simulating test: 10 rpm
•    Counting range: 1 ~ 9,999 times
•    Timing range: 1 ~ 9,999 s
•    Volume: 2,500 ml
•    Size: 385 mm × 410 mm × 500 mm
•    Weight: 35 kg

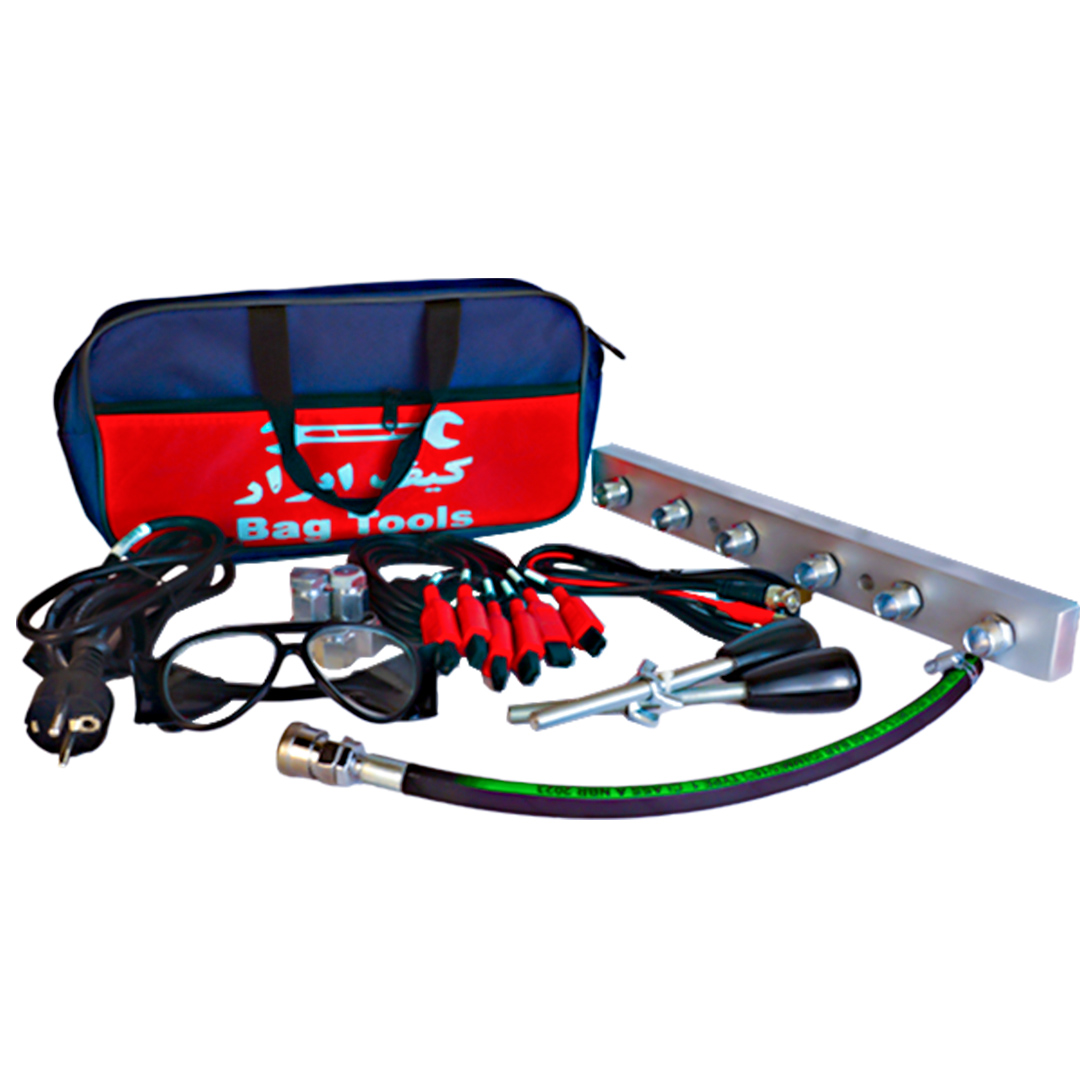

Accessories


•    Pulse signal connection cable (two sizes: 0.5 & 0.8)
•    Ultrasonic cleaner assembly
•    Reverse flush adaptor


Made In Iran

513 $
